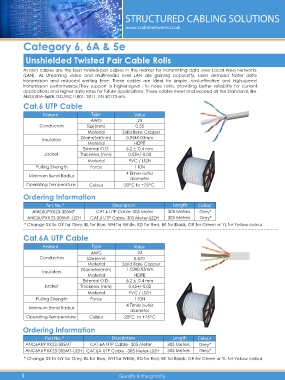

Page 12 - Avalon Catalogue

STRUCTURED CABLING SOLUTIONS

www.avalonnetworks.co.uk

Category 6, 6A & 5e

Unshielded Twisted Pair Cable Rolls

Avalon cables are the best twisted-pair cables in the market for transmitting data over Local Area Networks
(LAN). As streaming video and multimedia over LAN are gaining popularity, users demand faster data
transmission and reduced waiting time. These cables are ideal for simple, cost-effective and high-speed
transmission performance.They support a higher signal - to-noise ratio, providing better reliability for current
applications and higher data rates for future applications. These cables meet and exceed all the Standards like
ANSI//EIA-568B, ISO/IEC11801: 2011, EN 50173 etc.
Cat.6 UTP Cable

Feature Type Value
AWG 23
Conductors Size(mm) 0.55
Material Solid Bare Copper
Diameter(mm) 0.95±0.03mm
Insulators
Material HDPE
External O.D. 6.2 ± 0.4 mm
Jacket Thickness (mm) 0.55+/-0.05
Material PVC / LSZH
Pulling Strength Force 110N
4 Times outer
Minimum Bend Radius
diameter
Operating Temperature Celsius -20 C to +75 C
0
0
Ordering Information

Part No. * Description Length Colour
ANC6UPXX23-305MT CAT.6 UTP Cable-305 Meter 305 Meters Grey*
ANC6UPXX23-305MT-LSZH CAT.6 UTP Cable-305 Meter -LSZH 305 Meters Grey*
* Change XX to GY for Grey, BL for Blue, WH for White, RD for Red, BK for Black, GR for Green or YL for Yellow colour
...............................................................................................................................................................................
Cat.6A UTP Cable

Feature Type Value
AWG 23
Conductors Size(mm) 0.570
Material Solid Bare Copper
Diameter(mm) 1.03±0.03mm
Insulators
Material HDPE
External O.D. 6.2 ± 0.4 mm
Jacket Thickness (mm) 0.65+/ -0.05
Material PVC / LSZH
Pulling Strength Force 110N
4 Times outer
Minimum Bend Radius
diameter
Operating Temperature Celsius -20 C to +75 C
0
0
Ordering Information
Part No. * Description Length Colour
ANC6AUPXX23-305MT CAT.6A UTP Cable - 305 Meter 305 Meters Grey*
ANC6AUP XX23-305MT-LSZH CAT.6A UTP Cable -305 Meter -LSZH 305 Meters Grey*

* Change XX to GY for Grey, BL for Blue, WH for White, RD for Red, BK for Black, GR for Green or YL for Yellow colour
