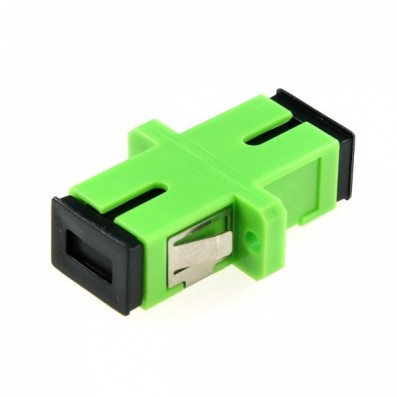

SC APC Fiber Optic Adapter
PRODUCT DESCRIPTION
Avalon SC Optical Fiber Adaptors are made to the highest manufacturing standards. APC adaptor is a mechanical device designed to align Optical Fiber Connectors. Avalon Adaptors contains the interconnect sleeve holding two ferrules together. Adaptors can be used to connect Fiber Connectors of the same type.
Features
- Simplex or Duplex
- Low insertion loss and back reflection loss
- High precision alignment
- Compact design
Applications
- Telecommunication networks
- FTTX, FTTH
- LAN, WAN, CATV networks
- Fiber communications, Data communication networks and Processing, Industrial, Mechanical and Military.
Specification
| APC Specification |
| Fiber Type | Single-mode, Duplex |
| Insertion loss | 0.2dB |
| Return Loss | .45dB |
| Mating Durability | -0.2dB typical change, 1000 times |
| Operating Temperature | -40 — +75°C |
| Storage Temperature | -40 — +85°C |
Ordering information
|
APC Part Number |
Description |
|
ANA-SM-SC/APC-SP |
SC/APC Simplex Adapter |
|
ANA-SM-SC/APC-DP |
SC/APC Duplex Adapter |
