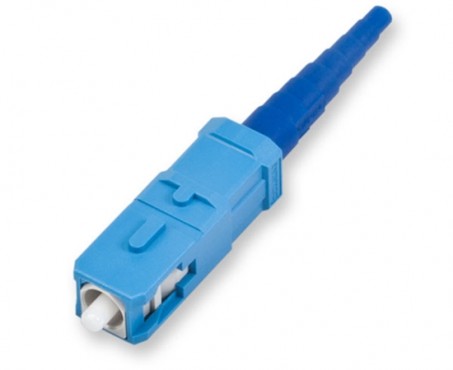

SC UPC Fiber Optic Connector
PRODUCT DESCRIPTION
Avalon SC UPC Connectors are manufactured in accordance with ANSI/TIA/ EIA-604-2 standards. The connector consists of a Housing, a crimp sleeve and a strain relief boot. Avalon SC connectors are non-optical disconnect connector with a 2.5mm pre-radiused Zirconia ferrule. Available in simplex and duplex styles, this connector features a push-pull connection design for quick patching of cables into the rack or wall mounts.
UPC Features
- Compliant with: IEC JIS, Telcordia
- 900um Buffered Fiber
- Multimode and Singlemode
- Fiber Optic Availability
- Minimum loss, High return loss, Easy to handle
Applications
- HDTV
- Local Area Network
- CAM networks
- Active Device termination
- Data System networks
Specification
| Characteristics | Conditions | Value |
| Insertion Loss | < 0.2 | |
| Mating Durability | 500 Time | < 0.2 |
| Temperature Cycling | -40 — + 85 | < 0.2 |
| (42 Cycles) | < 0.2 | |
| Humidity Cycling | 75 | < 0.2 |
| 95% / 336hr | < 0.2 | |
| Vibration | 10 — 55 Hz ( 2 Hrs) | |
| Impact | 1.5m drop, 8 Times | < 0.2 |
Ordering Information
| UPC Part Number | Description |
| AN-CNSMSC3MM | SC Connector Singlemode 3,0mm Boot |
| AN-CNMMSC3MM | SC Connector Multimode 3,0mm Boot |
