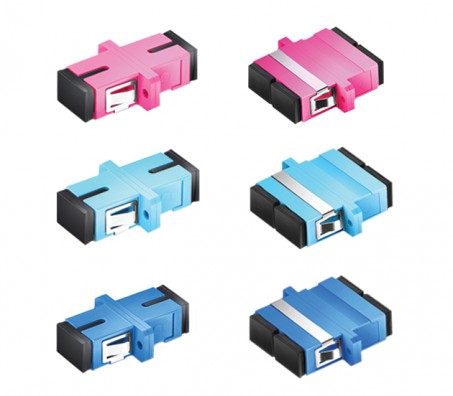

SC UPC Fiber Optic Adapter
PRODUCT DESCRIPTION
Avalon SC fiber optic adapters consist of a plastic housing. Singlemode SC UPC comes in blue colour. The adapters come with ceramic sleeves. The bronze sleeve SC adapters are generally multimode types.
Features
- Compliant with: IEC, JIS, Telcordia
- Convenience and ease of handling
- Optical performance 100% factory tested
- The flange or threaded mounting type
- Ceramic/Zirconia or phosphorous bronze sleeves
Applications
- Telecommunication networks
- FTTX, FTTH
- LAN, WAN, CATV networks
- Fiber communications, Data communication networks and processing, Industrial, Mechanical and Military.
- Active device termination
Specification
| Characteristics | Conditions | Value |
| Insertion Loss | 0.15 | |
| Mating Durability | 1000 times | 0.20 |
| Temperature Cycling | -40 — +85 (42 cycles) | 0.20 |
| Humidity Cycling | 75, 95%/336hr | 0.20 |
| Vibration | 10-55Hz(2hr) | 0.20 |
| Impact | 1.5m drop, 8 times | 0.20 |
Ordering information
|
Part Number |
Description |
|
ANA-SM-SC-SP |
SC/UPC Simplex Adaptor Singlemode |
|
ANA-SM-SC-DP |
SC/UPC Duplex Adaptor Singlemode |
|
ANA-OM3-SC-SP |
SC/UPC OM3 Simplex Adaptor Multimode |
|
ANA-OM3-SC-DP |
SC/UPC OM3 Duplex Adaptor Multimode |
|
ANA-OM4-SC-SP |
SC/UPC OM4 Simplex Adaptor Multimode |
|
ANA-OM4-SC-DP |
SC/UPC OM4 Duplex Adaptor Multimode |
